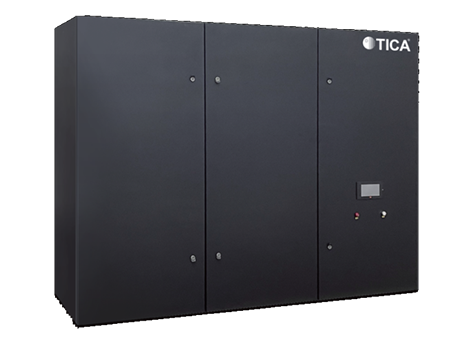

    Computer Room Air Handler- CRAH/CRAC

    TICA TRO series room-grade air-cooled precision air conditioners are suitable for cloud computing centers, computer rooms, Internet of Things, laboratories, communications and other places. They have the characteristics of compact structure, full front maintenance, high efficiency and energy saving, high control accuracy, and reliable operation. R410a environmentally friendly refrigerant is used., is the first choice for reducing TCO and environmental protection.

    Advantage

    Safe and reliable

    1) Using high-efficiency internal threaded copper tube and hydrophilic aluminum foil fin heat exchanger, it has the highest heat exchange efficiency and the best corrosion resistance. The fine design makes the unit have the characteristics of large heat exchange area and lowest wind side resistance;

    2) Equipped with advanced high-efficiency EC fan, the special curved surface design of the fan impeller has better aerodynamic characteristics, the EC motor protection system is complete maintenance-free, large air volume, stable operation, low noise, and obvious energy-saving effect. High static pressure fans can be ed to meet some special design requirements;

    3) There are two systems of fixed frequency and frequency conversion, and R410a environmentally friendly refrigerant is used. The frequency conversion unit adopts a DC frequency conversion fully enclosed scroll compressor, 10% to 100% load uninterrupted continuous cooling, and the evaporation temperature can be as high as 27 ° C, which is suitable for the application environment of high return air temperature.

    4) The dual-system air conditioner  balances the running time of the compressor and prolongs the service life of the compressor.

    Energy saving and high efficiency

    1) Use CFD simulation technology to optimize the layout of the unit, optimize the airflow organization, reduce the wind side resistance, and improve the energy saving of the product;

    2) Equipped with high-efficiency heat exchanger, optional internationally renowned brand DC variable frequency scroll compressor, equipped with EC fan, energy saving can be increased by 30%;

    3) The condensing fan can be adjusted steplessly, saving energy and low noise operation;

    4) The unit supports various operation modes such as return air control, supply air control, differential pressure control, etc., and can support dual power input.

    Intelligent control

    1) 7-inch LCD touch screen, which can monitor the running status and parameters of components in real time;

    2) Multi-level password protection function, with manual, timing, automatic delay and other start modes;

    3) It can automatically record alarm information and issue sound and light alarms;

    4) Standard RS485 communication interface, support Modbus-RTU protocol, or optional SNMP or TCP/IP;

    5) Co-Work dynamic botnet, which can support the networked operation of 32 units to realize the automatic control of the units.

    Technical Parameter

    DC variable frequency scroll compressor configuration of international first-line brands
    The compressor makes corresponding adjustments according to the different operating loads and pressure conditions of the system, which greatly improves the energy efficiency of part load. The evaporation temperature can be as high as 27 ° C, which is suitable for the application environment with high return air temperature.
    The world's advanced electronic expansion valve control technology
    It adopts electronic expansion valve control and precise adjustment to ensure stable liquid supply, more sufficient heat exchange and higher efficiency.
    Advanced packaged inverter
    All-in-one solution, with fuel injection control, oil return management, crankcase heating, and instant shutdown of high-pressure switches, is safe and reliable.
